Studio Zocca is a “Mechanical Engineering Solution Provider” with a solid background (1954) and skills to pinpoint solutions for a wide range of applications from the project phase right through the final product.
One of our main targets is to develop weight reduction, looking at alternative components and solutions, thanks to our continuous improvements in Research and Development, looking at Industry 4.0 as guideline of our investments. Please take a look at our new generation 4.0 Test Bench for transmissions and for any question please don’t hesitate to contact us at all.
All kind of gear and gear boxes can be tested. The system can be controlled remotely with a PC, tablet or phone.
The results in terms of speed, torque, temperature are available graphically or as data extraction at the end of the cycle.

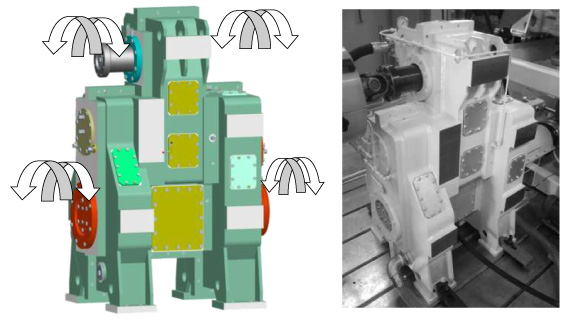

The drive unit features two counter-rotating shafts at the input, while inside, the direction of rotation is made concordant and sent to a differential whose only output is connected to the brake.
The differential distributes the torque exerted on the output shaft by the bench brake in 50% and 50% proportions to the two input shafts. In this way, the unit under test receives an equal amount of torque on the two counter-rotating output shafts.
Dimensions and weight
Example technical features
Construction features
